RT1 Dual telescopic ramp
The Masats telescopic ramp offers the best accessibility to the vehicle.

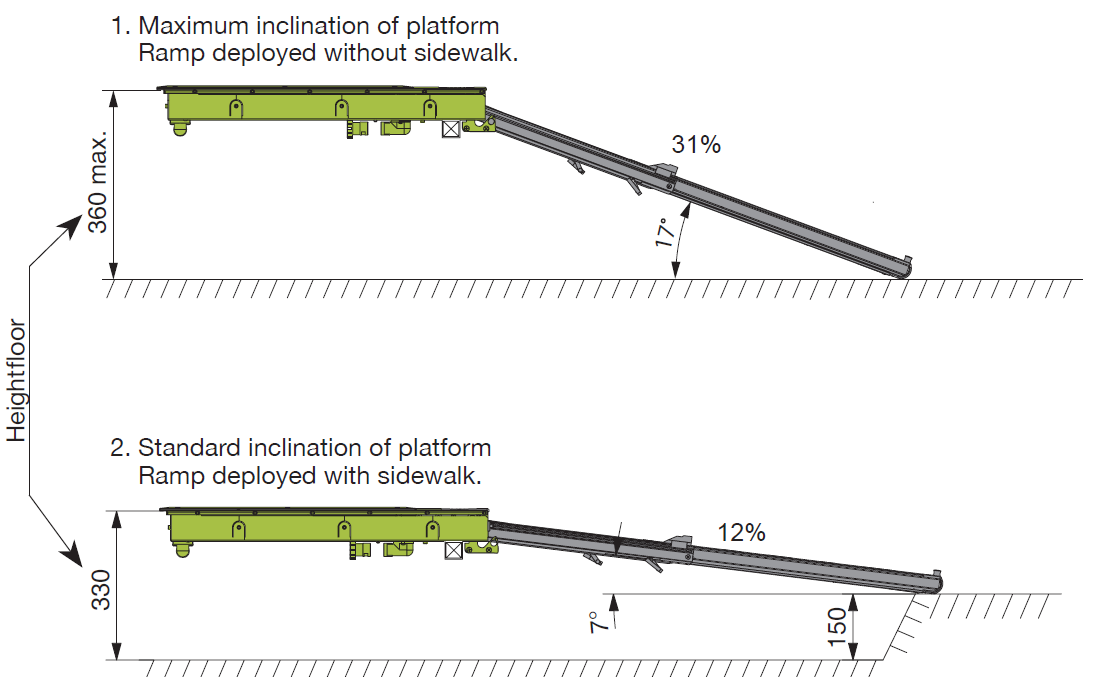

Its telescopic configuration allows to offer a longer platform, which results in a lower inclination, and an easier and more comfortable access to the vehicle.
Presence sensor mat on the platform, and sensitive edge, for utmost safety.
- System: Electric
- Accessibility: Ramp / Platform Lift
- Opening type: Ramp
- Compatibility: Autonomous buses, Commuters, Transit bus, Minibuses
/ Description and characteristics
- Electric or manual mode.
- Powered 12v / 24v
- Total weight: 75,5 Kg
- Maximum load 300 Kg

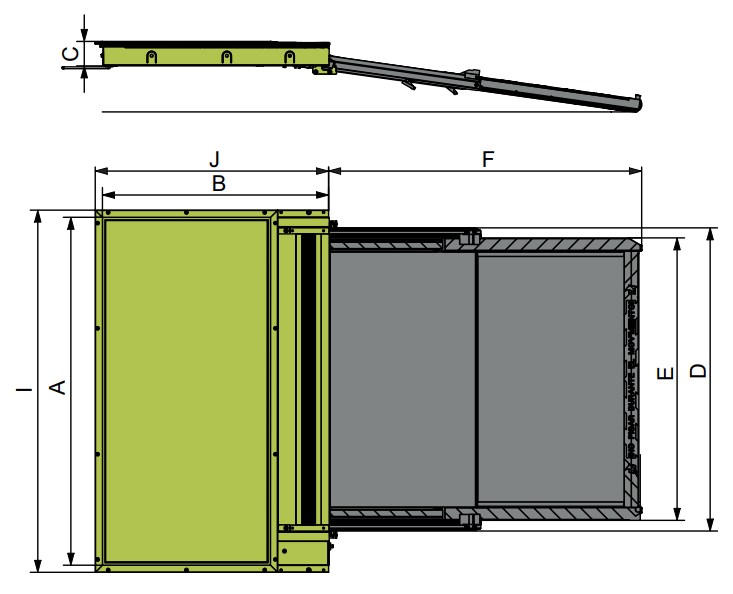

- Compact ramp 1242 x 787 x 78 mm
- Unfolded platform of 1150 mm
- Vehicles intended for Class I, ll, A.
- According to regulations UN R107
- Access to the mechanism from inside of the bus.
- Good adaptation with the floor of the vehicle.
- Dirt resistant.
- No step when entering.
/ Technical data
